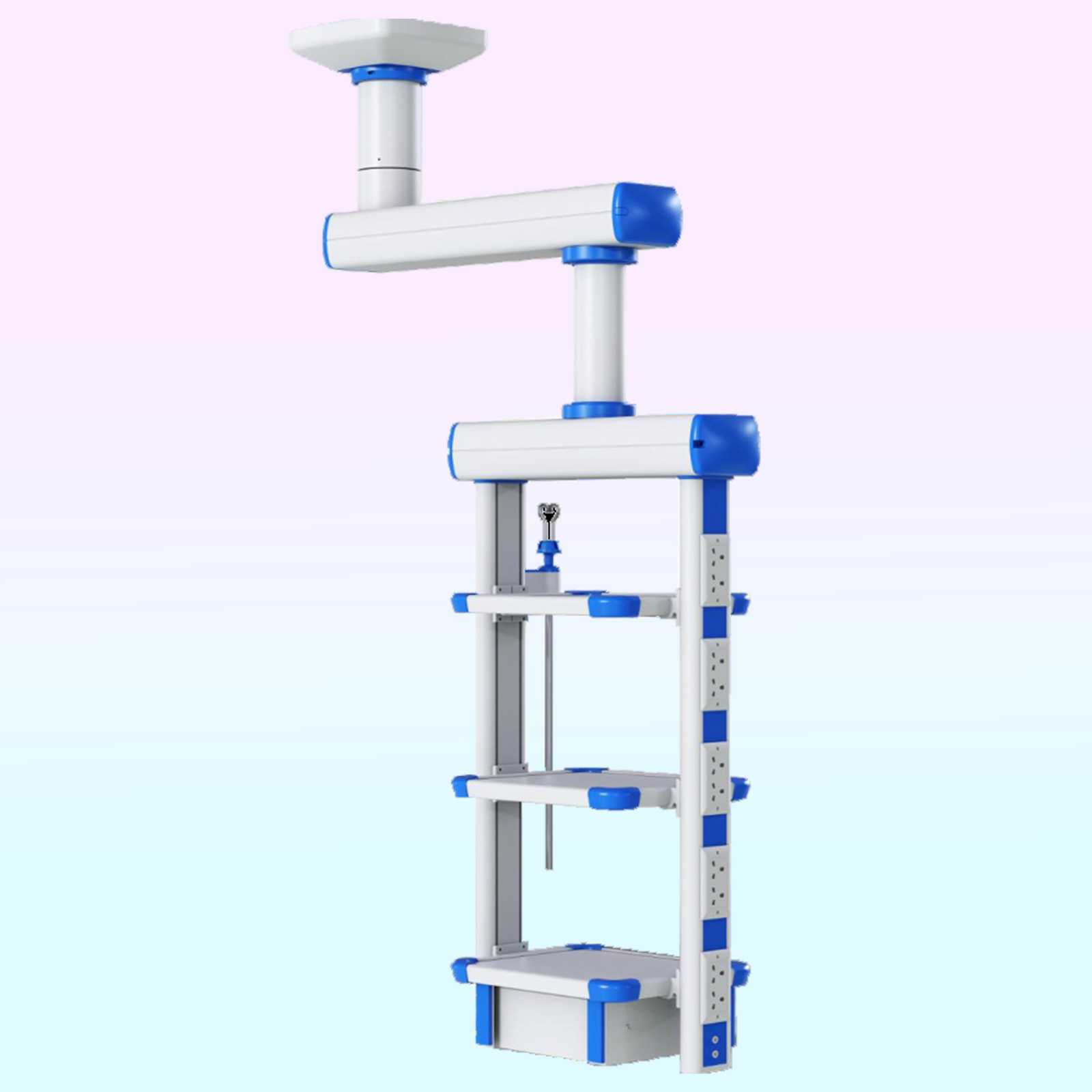

Laproscopy Pendant (O.T.)

Standard Configuration:

Gas interface configuration (2 oxygen, 2 vacuum suction, 2 compressed air):

• The interface color and shape are different, with anti-missing function
• The number of insertions and removals is more than 20,000 times
• Use secondary sealing, with three states (on, off, pull), with gas maintenance

Power socket: 10, 220V, 10A

Equipotential grounding terminal: 2

One stainless steel adjustable infusion rod holder

One stainless steel adjustable syringe pump frame

The main material is made of high-strength aluminum alloy profiles

The surface treatment is electrostatic spraying; the ceiling-mounted installation is stable and firm.

One storage item.

---

Technical Parameters: Single-Arm Mechanical

Working power: AC220V, 50Hz;

Cross-arm range of motion (radius): 700-1800mm (can be configured according to hospital requirements)

Horizontal rotation angle: 0 ~ 340 °, the cross arm and the terminal box can be rotated horizontally or simultaneously;

The net load weight: ≥120kg;

Instrument platform: 3 layers (height adjustable) optional 490mm * 360mm * 47mm or 550mm * 400mm * 47mm; with 10mm × 25mm side rail enclosure, rounded bumper design.
