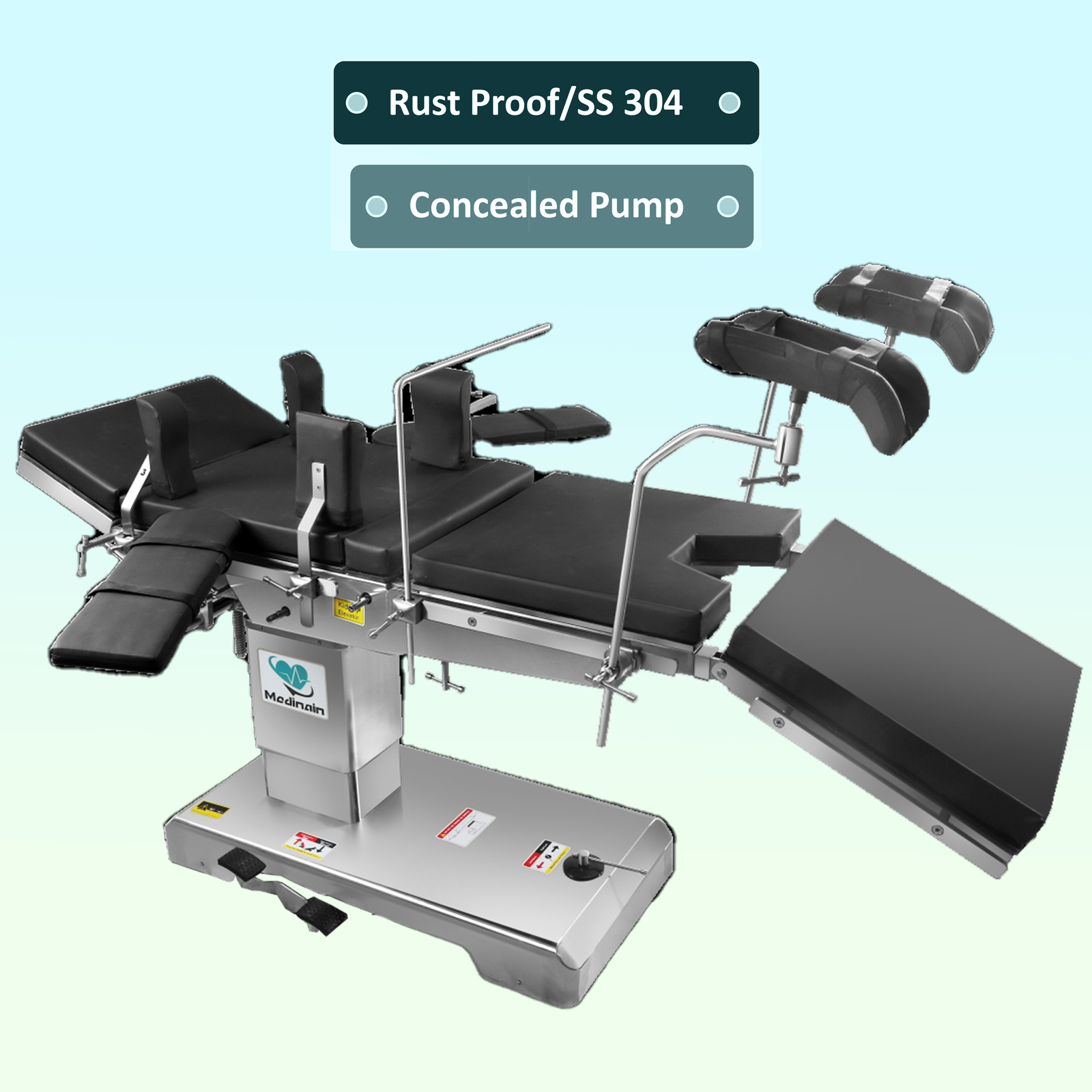

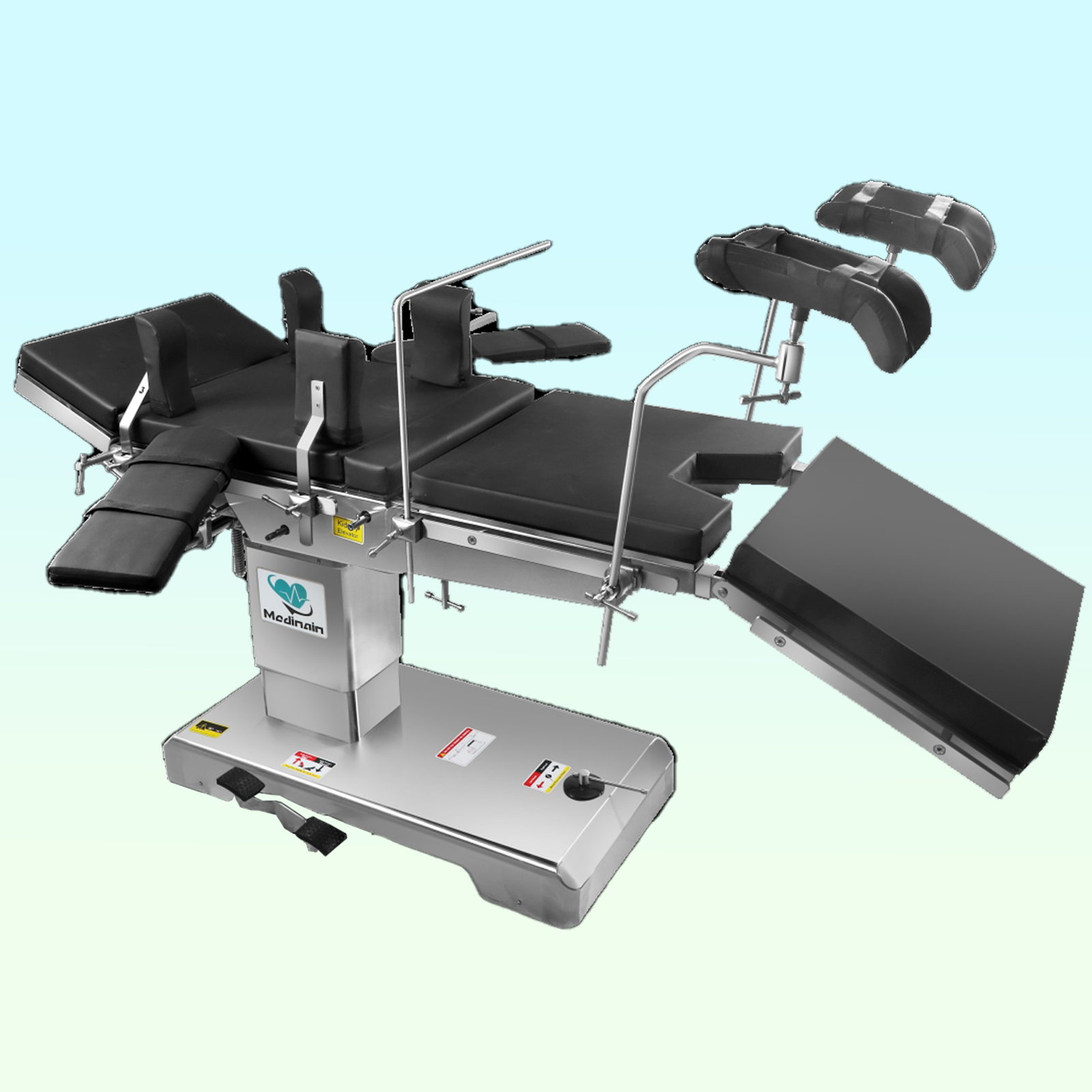

The base is eccentric for trouble-free C-Arm movements.
Eccentric pillars, Stainless filling.
LEG and HEAD SECTION are interchangeable.
Inbuilt Kidney Bridge.
Detachable head, leg, and pelvic section.
The base and cover are made of attractive, easy-to-clean stainless steel.
A sophisticated mechanism provides smooth, step-less articulation of the table top for precise
patient positioning.
Five sectional radio-translucent.
Technical Data:-
Top Dimension: L 1980mm x W 530mm
Height Adjustment: 750mm -1050 mm
Trendelenburg / Reverse: 30° / 25°
Lateral Tilt: 20° / 20°
Kidney Elevator: 130mm
Power Supply: 24V DC
Back Rest (up / down): 80° / 25°
Leg Rest (up / down):  10° / 90°
Head Rest (up / down): 45° / 90°
Battery Backup: 2-3 Hours (optional)
Mains Voltage Capacity: AC 220V±10%50Hz
Patient Weight Capacity: 200 Kgs
